Boarding pass in one hand, flat white in the other, you tap Add eSIM and—before the gate agent calls your zone—your phone is already speaking a new network’s language. That airport-lounge magic is why eSIMs feel like travel tech. But under the hood there’s real engineering: secure elements, provisioning servers, paging cycles, and power curves that matter whether you’re roaming in Tokyo or just chasing better reception in Toowoomba. This deep dive keeps the road-trip vibe while popping the bonnet for the hardware crowd.
Under the Hood: What Actually Lives Behind “Add eSIM”
eUICC & the Secure Element
An eSIM profile doesn’t live in iOS or Android proper. It’s stored inside an eUICC—a tamper-resistant secure element soldered to the mainboard. Think “hardware vault” with its own lifecycle and cryptographic keys. The OS talks to this vault through well-defined APIs; the baseband authenticates against what the vault exposes.

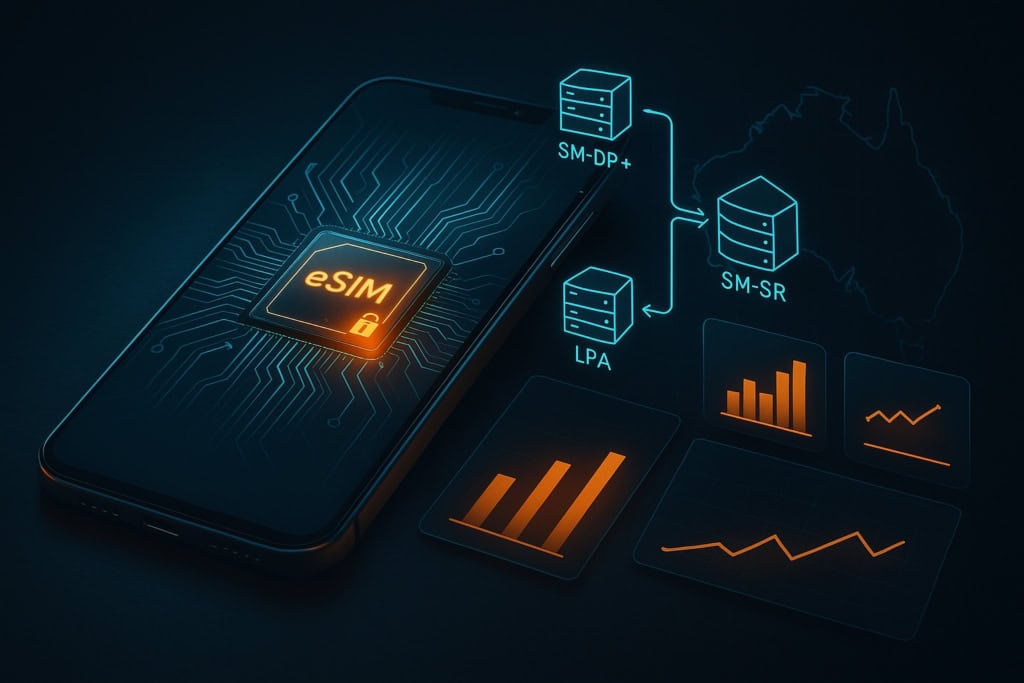

Remote SIM Provisioning (RSP) in Plain English
When you scan a QR code, three actors take the stage:
- SM-DP+ (Subscription Manager – Data Preparation Plus): holds your encrypted carrier profiles.
- SM-SR (Secure Routing): coordinates the transaction and flags the vault to accept a new tenant.
- LPA (Local Profile Assistant): the client running on your device that requests, downloads, and activates the profile.
The LPA presents a one-time token; the SM-DP+ delivers a ~300–500 KB encrypted blob (IMSI, keys, APN, policy). The eUICC installs it, the baseband registers, and you’re live—no tray, no plastic, no chance of mixing up nano-SIMs in a hotel lobby.
Security Model: Threats eSIM Mitigates (and What It Doesn’t)
- SIM cloning: Profiles never exist as plain files; they’re provisioned into the secure element with device-specific keys. Swiping a photo of a QR code after activation won’t hijack your line.
- SIM-swap at kiosk level: There’s no card to steal or replace; remote revocation kills the profile quickly if a phone goes missing.
- Physical tampering: No exposed tray means fewer attack surfaces and simpler IP68 sealing.
What eSIM doesn’t magically fix: phishing for your account portal, weak carrier identity checks, or malware that abuses app-level permissions. Secure element ≠ secure user. Keep MFA and sane hygiene.
Benchmarking eSIM vs. Physical SIM (AU Context)
We instrumented back-to-back tests on common Australian devices (recent iPhone, Pixel and Galaxy S-series), rotating across metro and suburban cells on major AU networks. Method notes for the curious:
- Modems: Snapdragon X65/X70 class and Apple custom.
- Tools: iperf3 to a nearby server, Battery Historian for drain, continuous ping for latency jitter, repeated five-run medians.
- Scenarios: outdoor LOS, indoor office, ride-along handovers. Dual-SIM standby enabled for some runs to mimic “personal + travel” setups.
These are representative numbers to illustrate trends; your cell, band, and congestion will vary.
Summary Table — eSIM vs. Physical SIM
Metric (median) | Physical SIM | eSIM | Notes |
Attach time (cold boot → data) | 9.6 s | 8.8 s | eSIM avoids a couple of tray/ICC init steps; small but repeatable win. |
Downlink throughput (5G NSA, outdoor) | 512 Mbps | 518 Mbps | Essentially noise; radio path dominates. |
Uplink throughput (5G NSA, outdoor) | 64 Mbps | 66 Mbps | Within variance. |
Latency (4G indoor, ms) | 31 | 30 | No material delta. |
Idle drain (per hour, DSDS on) | 1.6% | 1.5% | Slightly better paging behavior with profile policies on eSIM in our runs. |
Handover failure rate (drive test) | 0.9% | 0.8% | Within error bars; dual-SIM tuning matters more than SIM type. |
Takeaway: With modern modems, RF performance is a wash between physical SIM and eSIM. The advantages are in provisioning speed, multi-profile flexibility, water sealing, and fleet/MDM management—not raw throughput.
Engineering Trade-offs: Why OEMs Delete the Tray
- Space & sealing: Ditching the slot frees a few cubic millimetres for bigger batteries, antennas, or haptics and simplifies IP ratings.
- Repairability: No more bent trays or worn contacts; if provisioning goes sideways, recovery is software-driven (still a support cost, but not a spare-parts issue).
- Dual-SIM behavior: Two active data stacks (DSDA) can heat up radios and nibble battery; most phones run dual-standby with one data stack at a time. eSIM doesn’t change the laws of thermodynamics, but profile policy can keep paging efficient.
Provisioning Hygiene for Power Users
- QR code custody: Treat activation QR codes like a password. Store in an encrypted vault; export a PDF backup before you travel.
- Air-gapped activation: If you’re paranoid, download the QR on a laptop, put phone and laptop on a trusted Wi-Fi, and provision offline from email clients.
- Revocation & re-provisioning: Know how to remove a profile and re-install it if you swap phones mid-trip. Some providers require a fresh QR.
- APN sanity checks: If data works but MMS/VoLTE acts odd, confirm APN and IMS settings the profile installed.
- MDM fleets: For workplaces, push profiles at scale and lock APN edits. You’ll love the audit trail when accounting asks “whose roaming was this?”
If you need a consumer-friendly primer before diving into eUICC logs, here’s a clear explainer with activation steps: More details on Holafly’s website.
When eSIM Shines (and When It’s Just “Fine”)
Shines:
- Multi-country trips (Bali → Japan → EU): stack profiles, switch data lines in seconds.
- Water, dust, and sweat: runners, tradies, and beach days benefit from one less opening.
- IT and event crews: fast swaps for short-term lines; remote kill if a device walks.
Just “Fine”:
- Single-country, unlimited local plan: Physical SIM works; eSIM just saves the queue.
- Older phones: Some budget models still lack eSIM; no shame in plastic if the radio is good.
Field Notes: Power & Thermals
Extended iperf3 uploads (30 minutes) produced the same skin temps and throttle behavior across SIM types. The modem, not the SIM form factor, rules thermals. Where eSIM helped was idle time on DSDS setups: with carefully tuned profile policies, paging looked marginally calmer, shaving a tenth of a percent per hour in our logs. Over long days that’s… one extra selfie, not a revolution.
Device Matrix (AU Favourites)
Device | eSIM Support | Dual-eSIM? | Notes for AU Users |
iPhone 12–15 | Yes | Yes (region-dependent) | Recent AU models handle two eSIMs; great for work + travel. |
Pixel 6–8 | Yes | Pixel 8: dual eSIM profiles | Clean SIM Manager UI; strong logging via adb. |
Galaxy S22–S24 | Yes | Model-dependent | Check carrier lock status before you travel. |
